626614 Nordyne Limit Switch L180-40F
Product Overview

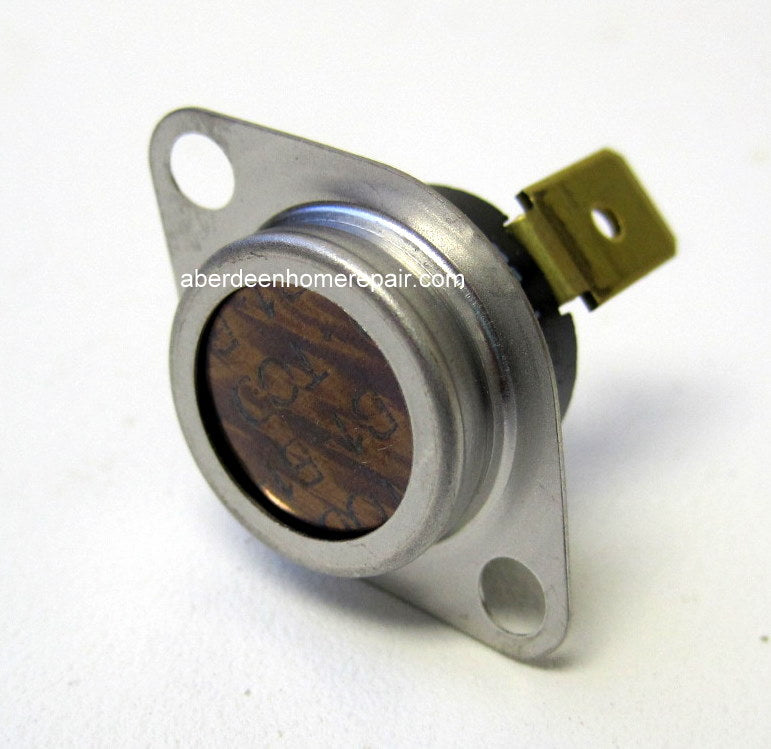

626614 is an OEM Nordyne automatic-reset temperature-limit switch that opens at 180 °F and closes again at 140 °F, providing reliable overheat protection in gas furnaces and air handlers. It features a 1/2″ sensing bulb, snap-in chassis-mount clip, and two 1/4″ male quick-connect spade terminals.
Technical Specifications
| Trip Temperature | 180 °F (opens) |
| Reset Temperature | 140 °F (closes) |
| Temperature Differential | 40 °F |
| Bulb Diameter | 1/2″ |
| Bulb Length | 3″ |
| Switch Type | SPST normally closed, automatic reset |
| Terminal Connections | Two 1/4″ male quick-connect spades |
| Mounting | Snap-in chassis-mount clip |
| Housing Material | Gray thermoplastic |
| Net Weight | 0.02 lb |
| Operating Ambient Range | –40 °F to 185 °F |
